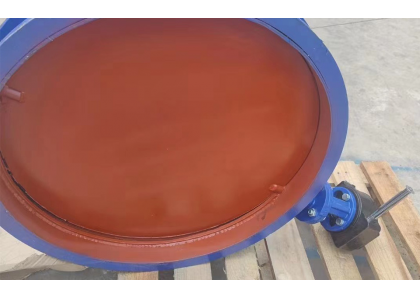

What factors are related to the high temperature resistance of the metal seal butterfly valve?

Sealing material

The melting point of the material: the melting point of the sealing material is one of the key factors determining its high temperature resistance. For example, metallic materials such as stainless steel, nickel-based alloys, etc. have higher melting points and can withstand higher temperatures. Like tungsten cobalt alloy melting point is very high, can maintain stability in the high temperature environment above 1000℃, with its hard seal butterfly valve as sealing material, high temperature resistance performance is excellent.

Thermal stability: The ability of a sealing material to maintain its physical and chemical properties at high temperatures. If the ceramic material has good thermal stability, deformation, oxidation or chemical reaction is not easy to occur at high temperature, so that the hard seal butterfly valve can maintain good sealing performance under high temperature conditions.

Expansion coefficient: The thermal expansion coefficient of the sealing material should match the valve body and other components. If the expansion factor is too large or too small, the sealing material may fail due to inconsistent expansion or contraction at high temperatures. For example, Teflon has a relatively large expansion coefficient and may need to be combined with other materials or specially treated to improve its suitability to the valve body when used in high temperature environments.

Valve body material

Metal material characteristics: The commonly used metal materials of the valve body are carbon steel, stainless steel, alloy steel, etc. Different metal materials have different high temperature resistance. For example, carbon steel is easy to oxidize and deform at high temperature, which is generally suitable for medium and low temperature environments. Stainless steel contains chromium, nickel and other elements, with good high temperature resistance, corrosion resistance, can maintain the strength and stability of the valve body at higher temperatures.

The role of alloying elements: adding specific alloying elements to metal materials can improve their high temperature resistance. If molybdenum, vanadium, titanium and other elements are added to steel, stable carbides can be formed, and high temperature strength and oxidation resistance of steel can be improved. The addition of chromium, aluminum and other elements in nickel-based alloys can form a dense oxide film on the surface and enhance the high temperature corrosion resistance of the alloy.

Structure design

Seal structure form: The seal structure form of the hard seal butterfly valve has an important impact on its high temperature resistance. For example, the bidirectional metal hard seal structure can better withstand bidirectional pressure at high temperature to ensure sealing performance. The butterfly valve with elastic metal seal structure can compensate the thermal deformation of the sealing surface at high temperature and improve the reliability of the seal by adding elastic elements to the metal seal surface.

Heat dissipation design: good heat dissipation design can reduce the temperature of the valve at high temperature and improve its high temperature resistance. For example, heat dissipation fins or heat dissipation channels are set on the valve body to increase the heat dissipation area so that heat can be distributed in time. Some large hard seal butterfly valves will also use forced cooling measures, such as cooling water pipelines set up inside the valve body to reduce the temperature of the valve body by circulating water.

Manufacturing process

Machining accuracy: Machining accuracy in the manufacturing process is very important for the high temperature resistance of the hard seal butterfly valve. High precision processing can ensure the flatness and smoothness of the sealing surface, so that the sealing surface can fit closely at high temperature and reduce leakage. For example, NC machining technology can accurately control the size and shape of the sealing surface and improve the sealing performance.

Heat treatment process: reasonable heat treatment process can improve the structure of the valve body and sealing components, improve its mechanical properties and high temperature resistance. Such as quenching, tempering and other heat treatment of the valve body, can refine the grain, improve the strength and toughness of the material; The surface treatment of the sealing parts, such as nitriding and hard chromium plating, can improve the hardness and wear resistance of the sealing surface and enhance its sealing performance at high temperature.
